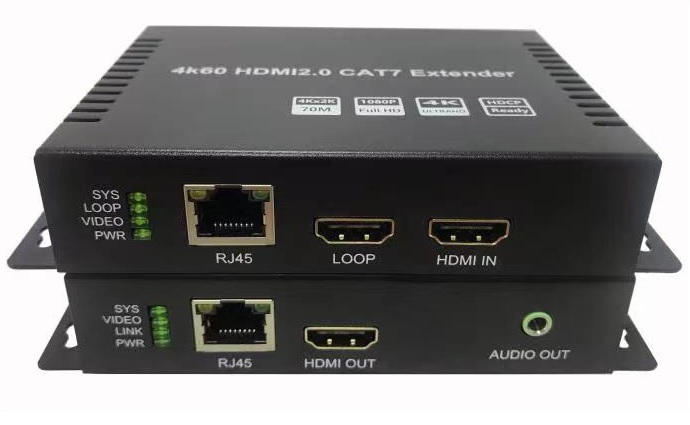

HDMI2.0 Extender over CAT6 70M(4K60 4:4:4)
1. Overview
HDMI2.0 Extender over CAT6 or CAT6A/7 extends 4K 60Hz 4:4:4 HDMI 2.0 signals to remote places, point-to-point transmission mode supports transmitter 1 channel HDMI2.0 input and 1 channel loop,Receiver 1 channel HDMI2.0 output and 1 channel audio output. It can extend HDMI 2.0 video signals up to 70 meters and transmit them over CAT6 cables at 4K 60Hz resolution. High bandwidth, no latency, remote playback of real-time HD video. It is widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc.
2. Products Feature
·Transmitter: 1-ch HDMI 2.0 input, 1-ch HDMI 2.0 loop out;
·Receiver: 1-ch HDMI 2.0 output, 1-ch audiounnesting output;
·1-ch RS232 data and 1-ch bidirectional IR optional;
·Transmission of 4K 60Hz HDMI signal 70m over CAT6;
·Support HDCP 2.2,compatible with 1.4;
·Support POC single-end power supply; DC12V,2A
·Desktop; Support 3U rack mounting.
3. Technical parameters
|
Items |
Specification |
|
Tansmitter |
1*HDMI in, 1*RJ45,1*HDMI loop out, 1-ch RS232 data and 1-ch bidirectional IR optional |
|
Receiver |
1*HDMI out, 1*RJ45,1*3.5mm audiounembeddingout, 1-ch RS232 data and 1-ch bidirectional IR optional |
|
HDMI compliance |
HDMI 2.0, compatible with HDMI 1.4 |
|
HDCP compliance |
HDCP 2.2, compatible with HDCP 1.4 |
|
Transmission Medium |
CAT6/CAT6A/CAT7 |
|
Transmission Distance |
≤70m |
|
Video Bandwidth |
18 Gbps |
|
Video resolution supported |
1280x960,1280x800,1280x768,1680x1050,1360x768,1366x768,1600x900,1024x768,800x600,3840*2160 60Hz |
|
Audio formats supported |
3.5mm audio unembedding (receiver) |
|
4K 60Hz4:4:4 |
Support |
|
HDMI interface |
Type A |
|
Type of Cable |
CAT6, CAT6A, and CAT7, comply with ieEE-5688 standard |
|
Input DDC signal |
0.7-1.2Vp-p |
|
Input TMDS signal |
5Vp-p |
|
Power Supply |
TX and RX both have external power adapter |
|
Material |
Metal |
|
Voltage/Current |
DC12V/2A |
|
Power Consumption |
10W |
|
Working temperature |
-0℃～50℃ |
|
Humidity (no condensation) |
0～90% |
|
Dimension |
110(L) x80(W) x 26.5(H)mm |
|
Net weight |
Tx: 0.3kg Rx: 0.3kg |

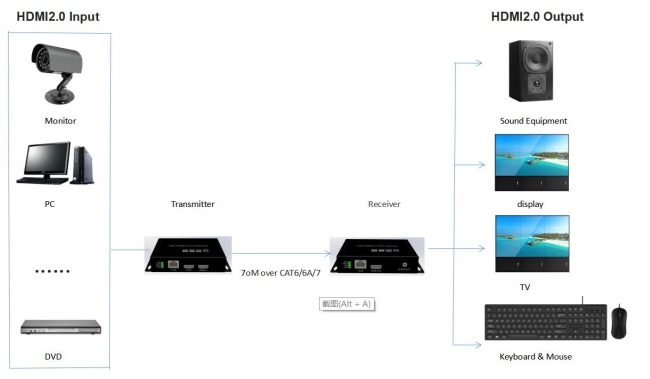

4. Topological graph
5. Application
Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank, Digital FPDs and projectors in conference room and auditorium, Kiosk with digital FPDs showing full motion graphic displays from remote systems, PDP displays for information in public sites, LED signboards in streets and in stadiums.
