            AV Product

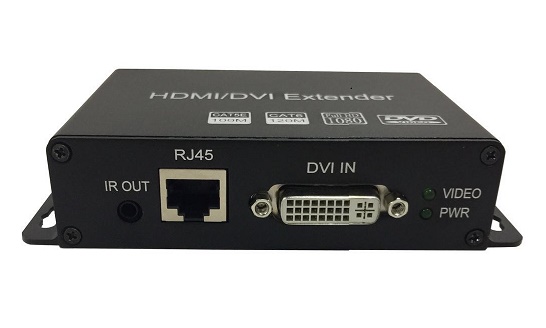

    DVI Extender over Cat5/Cat6

                DVI Extender over Cat5/Cat6, DVI Extender

    DVI Extender over Cat5/Cat6, DVI Extender






















    • Product Introduction
      •















    •




	1、Description

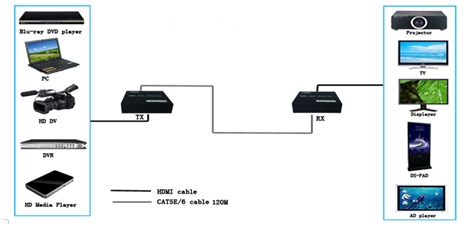

	DVI/HDMI Extender over cat5/cat6 extends HDMI/DVI
signals to remote places. It could extend HDMI video signal up to 120 meter
with normal 8 core cat5e/6/7 cable with 1080p resolution. High bandwidth, no
loss, no delay, plays real time HD video at remote places. Widely used in
computing and surveillance systems, big screen advertisement system, video
wall, bank, stock market, education system etc




	2、Features




	Uncompressed production solution




	Support
HDMI1.3; DVI 1.0




	Compatible
with HDCP 1.2




	IEEE-568B standard




	Resolution:1080p/720p/576p//480p/@24/50/60fps




	Max
120meter with cat5 and cat6 cable




	CEC pass through




	Transmitter:  1 HDMI input, 1RJ45 out




	Receiver:
1HDMI output, 1RJ45 in








	3、Specification


































															Items






															Specification










															Voltage/Current






															DC12V/1A










															Power
      consumption






															TX:＜3W     RX:＜3W










															HDMI
      compliance






															HDMI1.3










															HDCP
      compliance






															HDMI1.2










															HDMI
      input resolution supported






															480i@60Hz, 480p@60Hz,
      576i@50Hz,




															576p@50Hz, 720p@50/60Hz,




															1080i@50/60Hz, 1080p@50/60Hz,










															HDMI
      output resolution supported






															480i@60Hz, 480p@60Hz,
      576i@50Hz,




															576p@50Hz, 720p@50/60Hz,




															1080i@50/60Hz,
      1080p@50/60Hz,










															Audio
      formats supported






															L/R
      stereo audio










															Maximum
      transfer rate






															4.5Gbps










															Input
      and output TMDS signal






															0.5～1.5Vp-p(TMDS)










															Input
      and output DDC signal






															5Vp-p(TTL)










															Transmission
      length






															120m










															Input
      cable length supported






															≤8m(AWG24)










															Output
      cable length supported






															≤8m(AWG24)










															IR
      remote control






															Supports
      IR passback with 20~60KHz frequancy










															Transfer
      method






															Over
      UTP/STP CAT5/5e/6










															Connector






															RJ45










															Electrostatic
      protection of the whole machine






															1a Contact discharge level 3




															1b Air discharge level 3




															Standard: IEC61000-4-2










															Working
      temperature






															0～50℃










															Storage
      temperature






															-10～70℃










															Humidity
      (no condensation)






															0～90%










															Dimension






															100(L)
      x80(W) x 281(H)mm










															Material






															Iron
      alloy material + crystal panel










															Finishing






															Grit
      blast










															Color






															Black










															Weight






															TX:150g,
        RX:150g










															Mean
      time between failures (MTBF)






															>30000
      Hours
































	4、Applications:




	Digital
FPDs, PDPs and projectors for medical appliances, aero, traffic control,
factory, and bank, Digital FPDs and projectors in conference room and
auditorium, Kiosk with digital FPDs showing full motion graphic displays from
remote systems, PDP displays for information in public sites, LED signboards in
streets and in stadiums















      •








    •





      •
