HDBaseT DVI extender with HDMI output
HDBaseT DVI extender, support the transmitter HDMI loop, support bidirectional infrared control signal transmission; Support bidirectional RS-232 signal transmission; Support 1920×1200 resolution transmission，70M, 100 M, 150M optional;
1. Product introduction

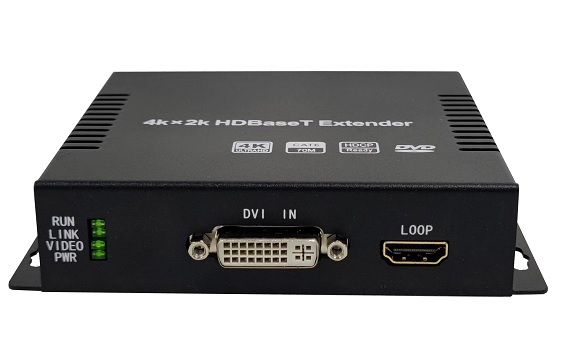

HDBaseT DVI extender with HDMI output, can convert DVI signal to standard HDBaseT signal and then extend DVI signal to 150 meters through Cat6. This product supports bidirectional infrared control signal and RS-232 transmission signal. And the transmitter side with HDMI output function, through the two-way infrared interface can easily control the signal source device or display device from the remote end. Supports a maximum resolution of 1920 x 1200. This product can be widely used in video conference system, multimedia signal broadcast, large screen display and many other fields.
2. Functional features
Support DVI 1.0, HDMI 1.4B and HDCP 1.4;
HDBaseT special technology, support direct connection with projector and other display equipment;
Video resolution up to 1920×1200, compatible with 1920*1080P60;
Transmission distance through CAT6 network cable up to 150 meters;
Support bidirectional infrared control signal transmission;
Support bidirectional RS-232 signal transmission;
Supports 1 channel HDMI video loop out;
Support 1920×1200 resolution transmission of 70 m, 100 m, 150 m optional;
3. Function Description
|
Specifications for |
|
|
Specification is compatible with |
DVI 1.0, HDMI 1.4B
|
|
Video bandwidth |
165MHz |
|
Video resolution |
Up to 1,920 ×1200, 1,366 ×768, 1,280 ×720, |
|
Color space |
RGB, YUV4:4:4, YUV 4:2:2 |
|
Color depth |
8-bit |
|
HDMI audio format |
LPCM2/5.1/7.1 CH, Dolby * Digital and DTS 5.1, Dolby *Digital, Dolby TrueHD,DTS-HD Master Audio,Dolby Atmos, DTS:X |
|
The connection |
|
|
The emitter
|
Input: 1 x DVI 1 x IR INPUT [3.5 mm Stereo Mini - jack] 1×RS-232[Phoenix terminal] Output: 1×HDBaseT Out[RJ45] 1 x HDMI Type A[19-PIN female port] 1 x IR OUTPUT [3.5 mm Stereo Mini - jack] |
|
The receiver
|
Input: 1×HDBaseT In[RJ45] 1 x IR INPUT [3.5 mm Stereo Mini - jack] 1×RS-232[Phoenix terminal] Output: 1 x DVI 1 x IR OUTPUT [3.5 mm Stereo Mini - jack] |
|
The fuselage |
|
|
The shell |
Metal case |
|
color |
black |
|
size |
100mm(length)×100mm(width)×25mm(thickness) |
|
The weight of the |
350 g
|
|
Power supply |
Input: AC100-240V 50/60Hz Output: DC 12V/1A |
|
The power consumption |
5W |
|
Operating temperature |
0 ~ 50 ° C
|
|
Storage temperature |
- 20 ° ~ 60 ° C |
