The 4K60 DP KVM Fiber Extender, developed and produced by Beijing HCSTCOM Co., Ltd, can transmit 10-80km through single mode optical fiber. It supports point-to-point connection. Support 1 channel DP1.2 HD video, 1 channel 3.5mm audio, 1 channel bidirectional infrared transmission, 1 channel data RS232, and 1 channel USB keyboard and mouse KVM function, can achieve remote control and management through USB mouse and keyboard. It is mainly used in outdoor advertising, projection fusion, command center, remote monitoring system, research and development security system and remote conference.
2. Main Features
·Support Display Port 1.2 standard, compatible with DP 1.0.
·Support 4K60 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200;
·1 channel 3.5mm analog audio (support transmitter audio embed, receiver audio unembed)
·Support 1-ch Bidirectionalinfrared transmission, 3.5mm interface;
·Supports 1-ch USB mouse and keyboard for remote control and management;
·Support 1-ch Bidirectional RS232 transmission and control (Optional);
·Using latest video lossless transmission technology, high reliability;
·Single-mode fiber transmission 10-80KM, multi-mode 0-2KM;
·The CWDM technology can realize 1-8 channel DP single-fiber transmission;
·Support 4U rack mounting and desktop PC optional.
|
Parameter |
RX |
|
|
DP Version |
||
|
HDCP version |
HDCP1.3 |
|
|
Optical Interface |
SFP Optical Interface (LC/PC) The wavelength is 1310NM |
|
|
Transmission Distance |
Single mode 10-80 km, multi-mode 0-2 km |
|
|
Band Width |
18Gbps |
|
|
Resolution Supported |
1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600、1280*720P 50/60Hz、 1920*1080P 25/30/60Hz 、3840*2160 30/60Hz; |
|
|
Audio Format |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
HDR10（YUV4:4:4） |
Support |
|
|
EDID unvarnished transmission |
Support |
|
|
KVM |
USB1.1, Mouse & Keyboard |
|
|
TMDS Input |
0.7~1.2Vp-p |
|
|
DDC Input |
5Vp-p |
|
|
Input |
DP In x1，DC2.1×1, USB-A ×1, 3.5×1 |
DC2.1×1, RJ45×1, USB-A×2，3.5×1 |
|
Output |
RJ45 ×1，3.5×1 |
DP Out ×1, 3.5×1 |
|
RS232 |
3PIN Green terminal /DB9 |
3PIN Green terminal /DB9 |
|
Bidirection, 3.5mm |
Bidirection, 3.5mm |
|
|
DP Interface |
Standard DP interface |
|
|
Mechanical Parameter |
TX |
RX |
|
Material |
Metals |
|
|
Size |
150.0(L) x 120(W) x 28(H)mm |
|
|
Net Weight |
260g |
260g |
|
Power Specification |
12V/1A |
12V/1A |
|
Power Consumption |
5W |
5W |
|
Operating Temperature |
0～50℃ |
|
|
Storage Temperature |
-30～70℃ |
|
|
Relative Humidity |
0～90% (RH) |
|

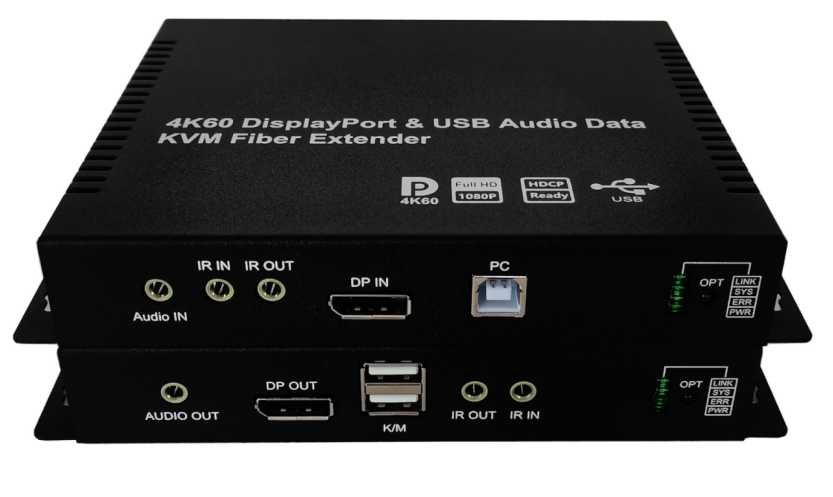

4. Product Picture
