The 4K60 DP KVM Extender, developed and produced by Beijing HCSTCOM Co., Ltd, can support point-to-point connection through CAT6 or CAT6A/7. Support 1 channel DP1.2 video, 1 channel 3.5mm audio, 1 channel bidirectional infrared transmission, 1 channel bidirectional RS232 data, and 1 channel USB keyboard and mouse KVM function, can achieve remote control and management through USB mouse and keyboard. It is mainly used in outdoor advertising, projection fusion, KVM command center, research and development security system and remote conference.
2. Main Features
Support Display Port 1.2 standard, compatible with DP 1.0.
Support 4K60 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200;
Support 1-ch Bidirectionalinfrared transmission, 3.5mm interface;
Supports 1-ch USB mouse and keyboard for remote control and management
Support 1-ch Bidirectional RS232 transmission and control (Optional)
Using latest video lossless transmission technology, high reliability;
Support 4U rack mounting and desktop PC optional;
|
Parameter |
RX |
|
|
DP Version |
||
|
HDCP version |
HDCP1.3 |
|
|
Cable |
CAT6/CAT6A/CAT7 |
|
|
Transmission Distance |
≤100 meters |
|
|
Band Width |
18Gbps |
|
|
Resolution Supported |
1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600 1920*1080 60Hz，1920*1200 60Hz ，3840*2160 60Hz，4096*2160 60Hz |
|
|
Audio Format |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
HDR10（YUV4:4:4） |
Support |
|
|
EDID unvarnished transmission |
Support |
|
|
KVM |
USB1.1, Mouse & Keyboard |
|
|
TMDS Input |
0.7~1.2Vp-p |
|
|
DDC Input |
5Vp-p |
|
|
Input |
DP Inx1，DC2.1×1, USB-A ×1 3.5×1 |
DC2.1×1, RJ45×1, USB-A×2，3.5×1 |
|
Output |
RJ45 ×1，3.5×1 |
DP OUT×1,3.5×1 |
|
RS232 |
3PIN Green terminal /DB9 |
3PIN Green terminal /DB9 |
|
Bidirection, 3.5mm |
Bidirection, 3.5mm |
|
|
DP Interface |
Standard DP interface |
|
|
Network Cable |
CAT6/CAT6A/CAT7, Sequence follows standard IEEE-5688 |
|
|
Mechanical Parameter |
TX |
RX |
|
Material |
Metals |
|
|
Size |
150.0(L) x 120(W) x 28(H)mm |
|
|
Net Weight |
260g |
260g |
|
Power Specification |
12V/1A |
12V/1A |
|
Power Consumption |
5W |
5W |
|
Operating Temperature |
-20～60℃ |
|
|
Storage Temperature |
-30～70℃ |
|
|
Relative Humidity |
0～90% (RH) |
|

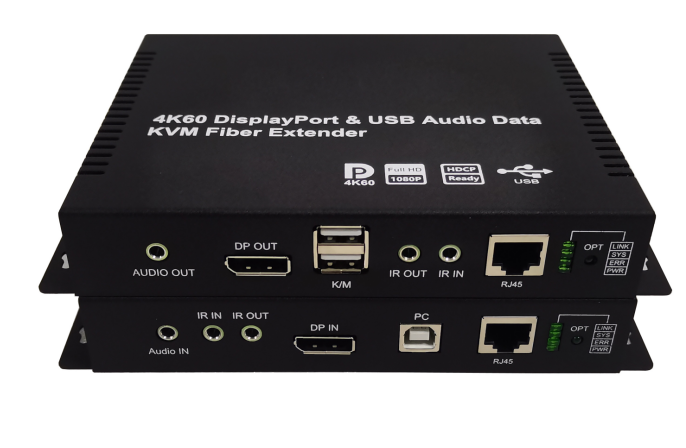

4. Product Picture
