    12G-SDI Fiber Extender with Loop out

                3G-SDI,6G-SDI,12G-SDI fiber extender, 1-64 channels CWDM uncompressed SDI fiber optic extender,we welcome any AV transmission OEM device

    12G-SDI fiber optic transmitter and receiver,  3G-SDI fiber converter, 1-64 channels CWDM uncompressed SDI fiber optic extender,  HD-SDI to fiber extender,  SDI optical transceiver.  SDI extender over fiber .   we welcome any AV transmission OEM device























    • Product Introduction
      •















    •

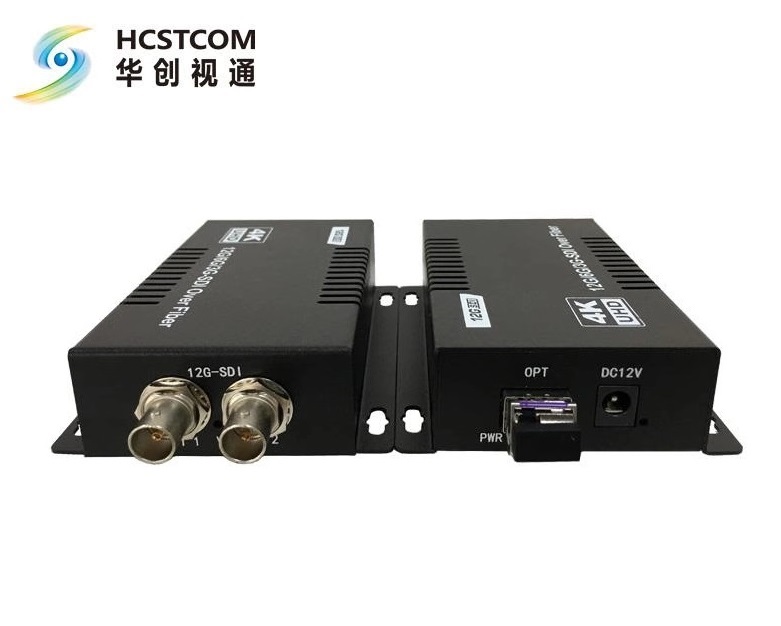

 Name ： 12G-SDI fiber optic transmitter and receiver,12G-SDI Fiber Extender with Loop out



 1、Overview

 12G-SDI fiber optic extender could transmit3840*2160 60Hz resolution of 12G-SDI signal with 11.88Gb bandwidth over single core fiber cable.it is compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching) and SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082



 2、Features

 * 1-ch 12G-SDI over single core fiber cable. Save fiber cable sources.

 * Has 2 SFP port, could have one fiber cable as back up.

 * Support 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching)

 * SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

 * Could support rack mount



 3、Application

 Remote OB Van/Truck Video Feeds

 Broadcast Studio Camera Feeds

 Long-haul Signal Transport

 TV station/video conference

 Lecture Hall Projector Connectivity

 Medical/Surgical Room Broadcast

 Building to Building video conference calling

 Small corporate campus video links



 4、Specification

 12G-SDI/ASI In/ Out：1  channel with loop optional

 Signal standard:       SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S, 2081,2082,

                                            DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)

 Signal level:	   800mV nominal

 Reflection loss:	   >15DB

 Rise/drop time:	 200ps nominal

 Reflection loss：	> 15dB

 connector：	75Ω BNC

 Overshoot：	10% amplitude

 Jitter:    < 0.3UI

 Optic：Others

 Transmission distance：10KM

 Fiber Type：	        single mode (multimode optional)

 Operating temperature：	-45°C~+50°C

 Wavelength：	1310nm，1550nm

 Power:    10W

 Reflection loss	> 15dB

 Average time trouble-free:	>100000 hours

 Connector:	LC/PC

 Case: Stand alone(1U rack mount optional)







      •








    •





      •








    •






      •
