1. Product Introduction:

The DVI KVM Extender, produced by Beijing HCSTCOM Co., Ltd, adoptsdigital circuit design and incorporates HDBase-T technology. It can extend 1-ch DVI input, 1-ch bidirectional audio, 1-ch RS232 data, 1-ch bidirectional infrared, 1-ch USB2.0, which supports keyboard and mouse, 1-ch reverse power on and other signals by CAT5E/CAT6 network cable 100-150 meter. It supports USB2.0 disk and printer signal transmission. The device uses desktop design, 220V/AC power supply. It is widely used in video conferencing, large screen display and multimedia display control system, high quality image display engineering, medical image display and projection system; It is suitable for long-distance video and information transmission system such as airport, railway station, traffic command center and power control center.

2. Main Feature:

? Transmiter supports 1-ch DVI, 1-ch two-way audio, 1-ch RS232 data, 1-ch USB2.0(supportingkeyboard and mouse ), 1-ch two-way infrared, 1-ch reverse poweronsignal;

? Receiver supports1-ch DVI, 1-ch two-way audio, 1-ch RS232 data,4-ch USB2.0(supportingkeyboard and mouse ), 1-ch two-way infrared, 1-ch reverse poweronsignal;

?Transmission distance: 100m, ultra remote mode 150 m;

? EDID management, support transparent transmission mode, learning mode is optional;

? DVI supports 1080P@60Hz, 1920*1200, downward resolution compatibility;

? Support USB2.0flash disk and printer signal transmission;

? LED indicator, showing the current working status;

? 220V/ACpowerinput; DC12V input optional;

?Desktop design,

?Work with our DVI KVM switcher to form a remote transmission system.

3. ProductParameter:

4,Product Picture

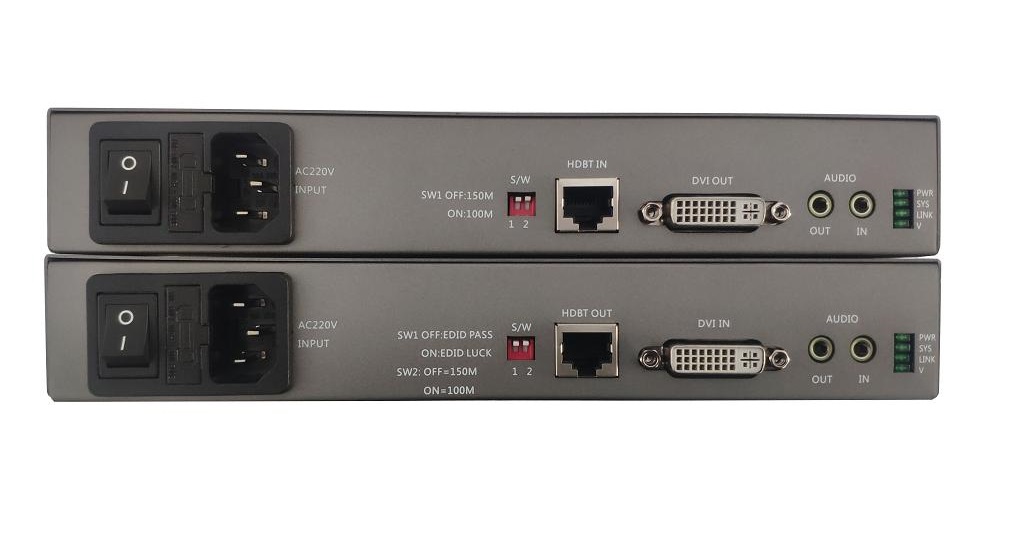

                                                 Front Panel

                                               Rear Panel

5、Product Ordering Information

Model:      HC2010 -HDBT-DVI

Parameters: Transmission 1ch DVI, 1ch two-way audio, 1ch RS232 data, 1ch USB2.0 keyboard and mouse, 1ch two-way infrared, 1ch reverse power on trough a network cable (CAT5E, CAT6); Desktop; AC220V input.
