            Industrial Ethernet

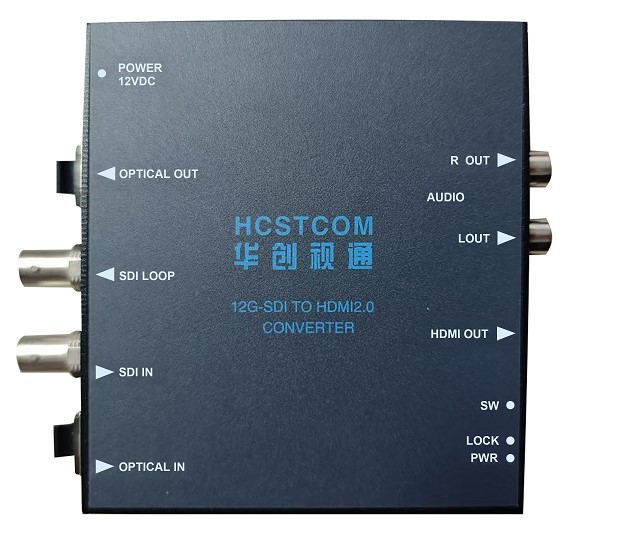

    12G-SDI to HDMI2.0 Converter

                12G-SDI to HDMI2.0 Converter 12G-SDI to Fiber & HDMI2.0 Converter

    12G-SDI to HDMI2.0 Converter 12G-SDI to Fiber & HDMI2.0 Converter





















    • Product Introduction
      •















    •




	1. Overview

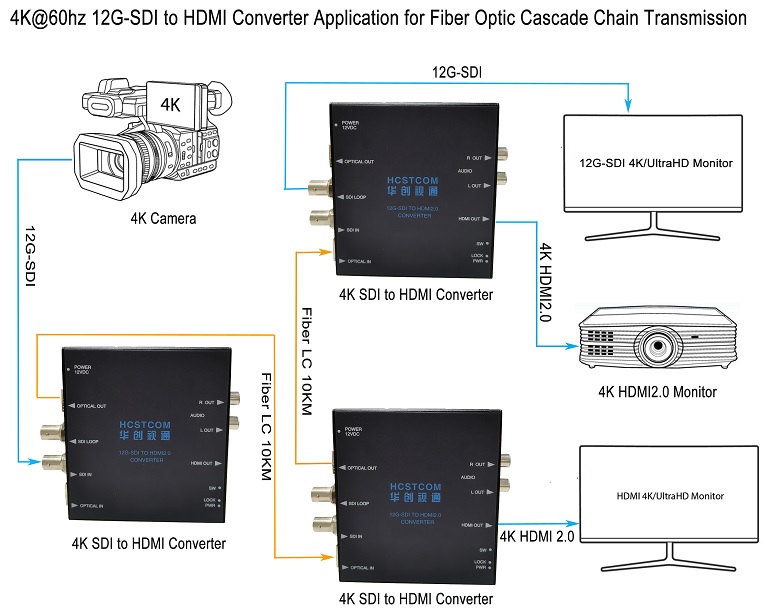

	The 12G-SDI to HDMI2.0 converter produced by Beijing HCSTCOM Co.,Ltd converts 12G-SDI signals to HDMI2.0, enabling ultra HD and 4K original images and HFR to achieve high fidelity. Itsupports 4K/ UHD HDMI or SDI signal to a long distance transmitted over fiber optic cable. It supports video source input from SDI port or Optical SFP port by DIP switch, supports1-ch 12G-SDI loop out with clock recovery function, 1-ch 12G-SDI optical SFP port output, and2-ch analog audio RCA output.It can be used together with our 12G-SDI fiber series products









	2. Product features




	? Convert 12G-SDI to HDMI 2.0, up to 4K60P;




	? Supports 1-ch 12G-SDI input, or 1-ch 12G-SDI optical SFP port input;




	? 1-ch 12G-SDI loopout, supports clock recovery function.




	? 1-ch 12G-SDI SFP optical port output, supporting single-mode single-fiber transmission to 10-80km;




	? supports HDMI embedded audio output, or de-embedded 2-ch analog audio RCA output;




	? supports 10-bit 4:2:2 Input and Output up to 4K 60Hz;




	?The SDI embedded audio supports 16 channels and 24 bits;




	? AC-3 embedded Audio passthrough(Dolby Digital);




	? LED display power supply and signal lock status;




	? 12V dc power supply.









	3.Technical Specifications










					Video Formats






					(4K) 4096 x 2160p、(UHD) 3840 x 2160p、(2K) 2048 x 1080p、(HD) 1920 x 1080p、(HD) 1920 x 1080i、(HD) 1280 x 720p、(SD) 720 x 576i、(SD) 720 x 480i










					12G-SDI




					Video Input











					·1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082




					·YCbCr 4:2:2/4:4:4




					·RGB 4:4:4,




					·10-bit










					12G-SDI




					Video Resolution






					·1x 12 Gb SDI




					(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					(UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					·1x 6 Gb SDI




					(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30




					(UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30




					·1x 3 Gb SDI




					(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					(HD) 1920 x 1080i 50, 59.94, 60




					(HD) 1280 x 720p* 50, 59.94, 60




					·1x 1.5 Gb SDI




					(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30




					(HD) 1920 x 1080i 50, 59.94, 60




					(HD) 1280 x 720p 30,50, 59.94, 60




					·1x 270 Mb SDI




					(SD) 625i 50




					(SD) 525i 59.94










					12G-SDI




					Optical Input











					1x 12G-SDI fiberLC connector，SMPTE 297/259/292/424/2081/2082

 ·Nominal Wavelength:Rx 1260 nm (Min)， 1620 nm (Max)

 ·Optical Sensitivity: - 10dbm(Min12gbps)， - 14dbm(Min3gbps)










					12G-SDI




					Optical Output






					1x 12G-SDIfiber LC connector, SMPTE259/292/424/2081/2082




					Nominal Wavelength：Tx 1260 nm（Min）、1310 nm（TYP）、1620 nm（Max）（CWDM wavelength optional）




					Optical Power：-5 dBm（Min），0.5 dBm（Max）










					HDMI




					Video Output











					·1x HDMI Type A connector，HDMI V2.0




					·HDR signaling metadata pass-through and optional override;




					·YCbCr 4:2:2/4:4:4/4:2:0




					·RGB 4:4:4, SMPTE or Full level




					·8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)










					HDMI




					Output Resolution






					(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					·(UHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					·(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60




					·(HD) 1920 x 1080i 50, 59.94, 60




					·(HD) 1280 x 720p 30,50, 59.94, 60




					·(SD) 720 x 576i 50




					·(SD) 720 x 480i 59.94










					Audio




					Pass-Through Formats






					· PCM

 ·Dolby Digital(AC-3)










					AudioOutput Digital






					·SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel










					AudioOutput Digital






					·HDMI embedded audio, 24-bit, 8-channel










					Audio Output Analog






					· 2x RCA style connector, 2-channel -10dBu (nominal)










					Size (w x d x h)






					(105 x 92x 29 mm)










					Weight






					(0.3 kg)










					Power











					12V DC，10W

 100-240V AC, 50/ 60hz










					Environment











					Safe Operating Temperature：0 to40℃

 Safe Storage Temperature (Power OFF)：-40 to60℃

 Operating Relative Humidity：10-90% noncondensing















	*The Converteruse approximately 10 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack with otherdevices.








      •








    •





      •
