12G-SDI 16x16 Matrix Switcher

I. Product Description

The 12G-SDI 16x16 Matrix Switcher can combine multiple SDI cameras, SDI monitors, non-linear editing systems, tape decks and file-based VCRs into a perfect video system. 1U form factor design supports 16 12G-SDI inputs and 16 12G-SDI outputs, compatible with 12G/6G-SDI/3G-SDI/HD-SDI/270M signals.

The 12G-SDI 16x16 matrix switcher supports high format resolution, high frame rate (HFR), and deep color formats, while reducing cable count when transmitting 4K/UltraHD via SDI. 12G-SDI 16x16 matrix switcher is widely used in broadcasting, live broadcasting, large-scale concerts, sports events, multi-media teaching, and a variety of event venues.

II. Features

1. Support 16 channels 12G-SDI input, 16 channels 12G-SDI output.

2. Maximum resolution support 4K@60Hz 4:4:4.

3. Automatically compatible with 12G/6G/3G/HD/SD-SDI/270M.

4. Support one-to-one, one-to-many, many-to-many output modes.

5. Support LCD display system information setting.

6. By adopting high-performance image processing technology, image signals can be transmitted over long distances without distortion. Each output resolution can support up to 3840X2160 60Hz, with clearer and more textured image quality.

7. Support a variety of professional cameras, PC devices such as input, plug and play, flexible operation.

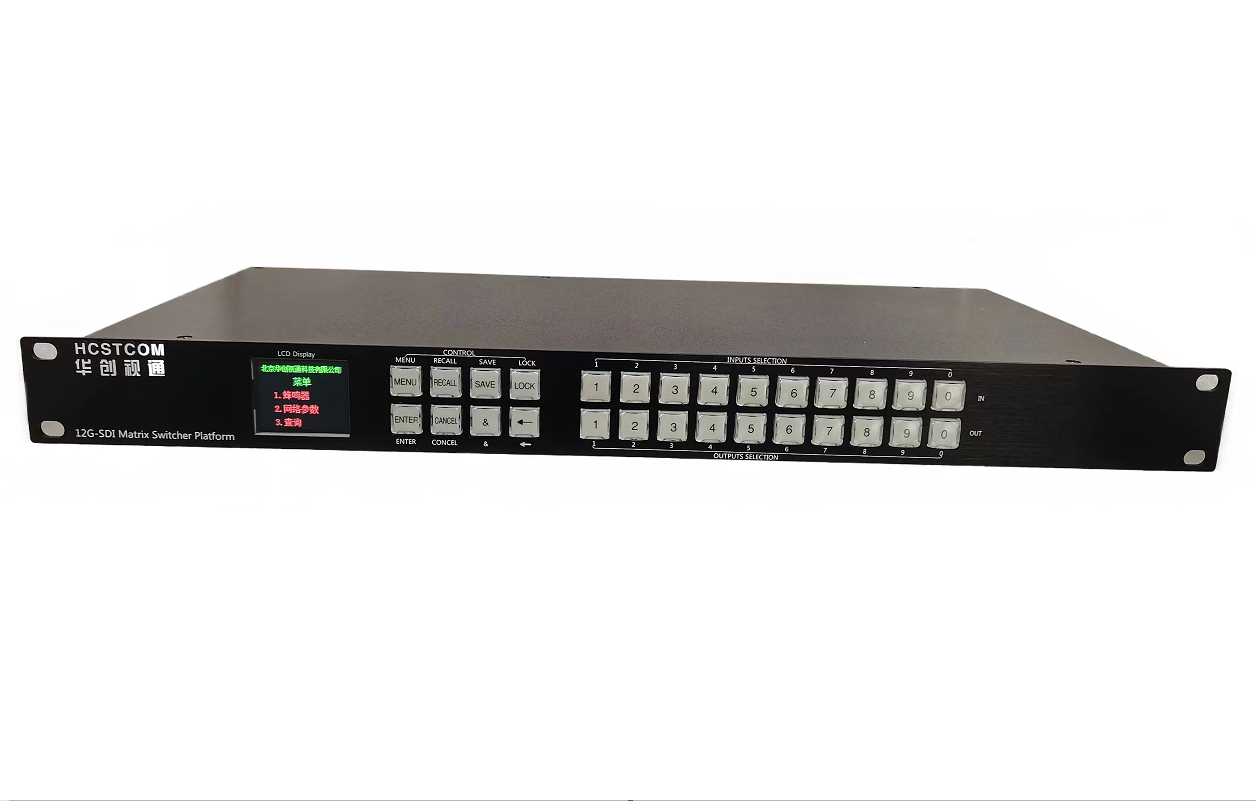

8. The front panel has buttons and LCD panel, making it convenient for customers to operate and display real-time status.

9. Support RS232/RJ45 interface control, network port can be open API protocol for customers to connect to other control boards.

10. Customizable special functions; 12G-SDI 8*8, 8*16 input/output can be customized.

III. Technical Parameters
